1658622-6
Manufacturer:
TE Connectivity
Mfr.Part #:
1658622-6
Datasheet:
Description:

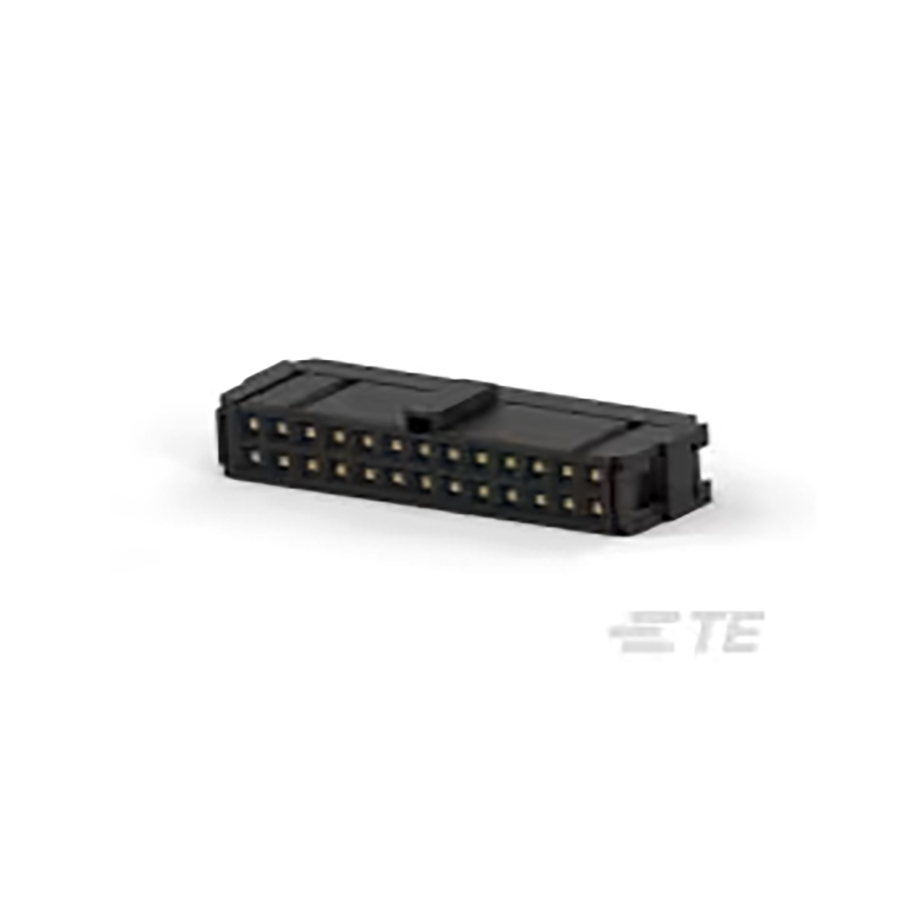

Headers and Wire Housings Free Hanging Header Number of Positions:26 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 37.58946 mm |
| Width | 7.49 mm |
| Termination | IDC |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 26 |
| Packaging | Tube |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 26 |
| Connector Type | Header |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Housing Color | Black |
| Mating Post Length | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Mating Connector Lock | Without |
| Termination Post Length |
Stock: 1593
Distributors
pcbx
pcbxUnit Price$1.42009
Ext.Price$1.42009
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.42009 | $1.42009 |
| 10 | $1.20636 | $12.06360 |
| 25 | $1.13051 | $28.26275 |
| 50 | $1.05912 | $52.95600 |
| 100 | $0.99224 | $99.22400 |
| 300 | $0.92959 | $278.87700 |
| 500 | $0.87089 | $435.44500 |
| 1000 | $0.81590 | $815.90000 |
